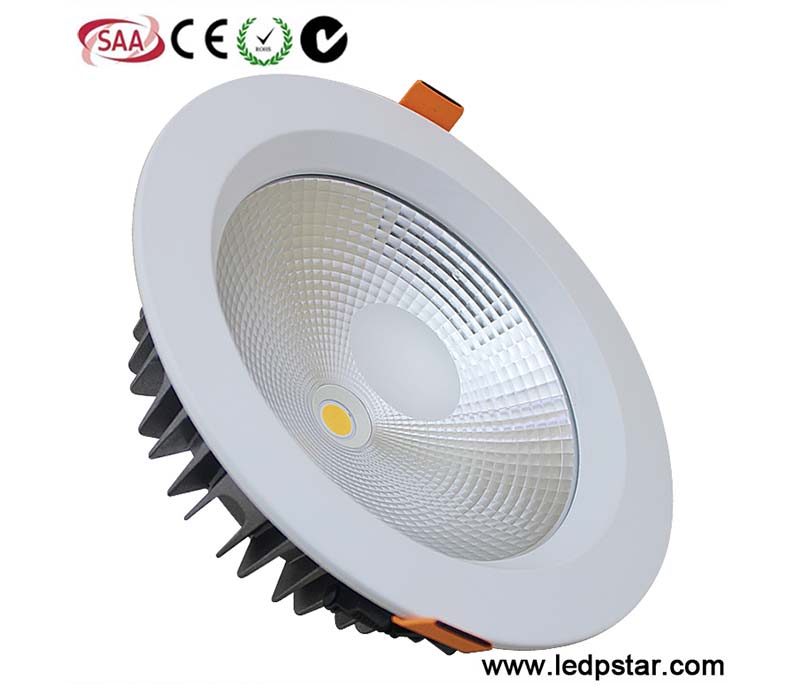

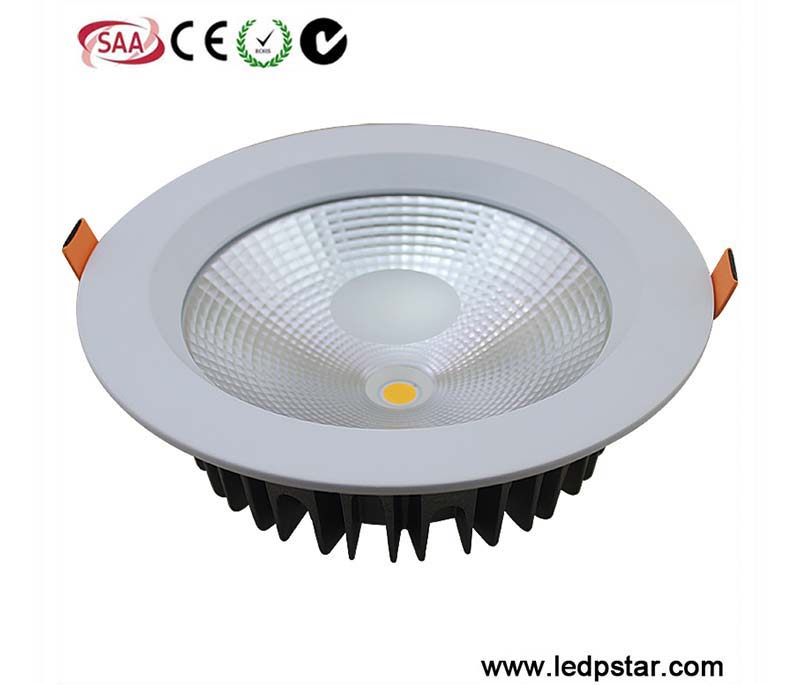

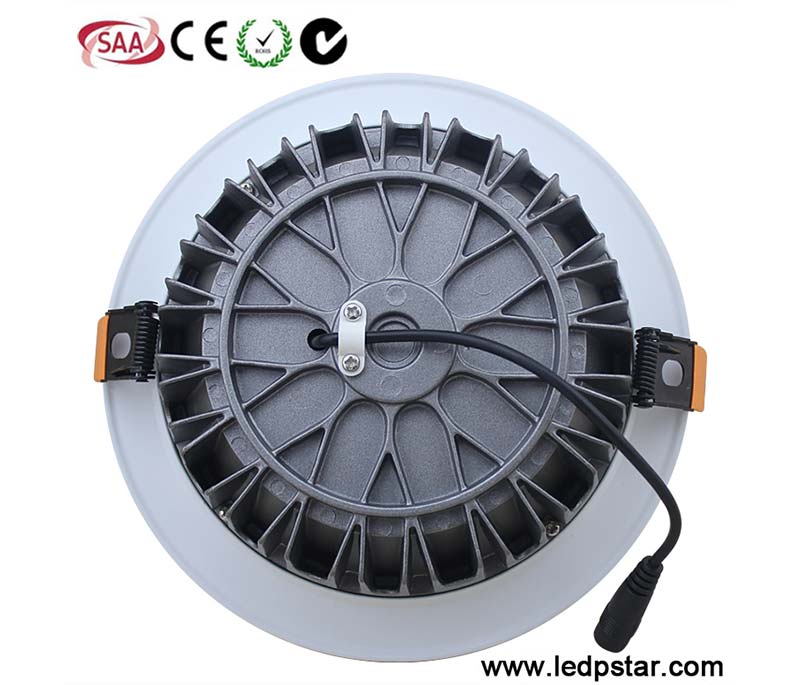

LED Downlight C8
产品型号:PS-DL-6'20W-C8- 产品信息
- 测试
- 安装
- 下载文件
产品信息
| 额定功率 | 20w |
| 材质 | 铝 |
| 颜色 | 白色 |
| 开孔 | 160-170mm |
| 产品尺寸 | 190*60mm |
| 外壳最高温度 (nom) | 65℃ |
| 光源类型 | COB |
| 光源品牌 | 科瑞 |
| 色温 | 2700K/3000K/3500K/4000K/5000K/5700K |
| 驱动品牌 | 锐高/明纬/欧司朗/飞利浦/柏科 |
| 光学 | 反光杯 |
| 发光角度 | 60° |
| 质保 | 5年 |
| 测试方式 | 积分球, IES/Ldt |
| 储藏环境温度 | -40℃~65℃ |
| 工作环境温度 | -20℃~45℃ |
| 防护等级 | IP44 |
| 适用范围 | 室内 |
产品参数配比
| 额定功率 | 色温(nom) | 显色指数 | 色容差 | 光通量(光效) | 光衰(10000hs) |
| 20w | 3000K | CRI>80 | <3 | 2449LM(122lm/w) | <3% |
| CRI>90 | <3 | 2099lm(104lm/w) | <3% | ||
| CRI>97 | <3 | 1878lm(93lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 2514LM(125lm/w) | <3% | |
| CRI>90 | <3 | 2132lm(106lm/w) | <3% | ||
| CRI>97 | <3 | 1926lm(96lm/w) | <3% |
残品参数
| 额定功率 | 20w |
| 额定电压 | 220-240v/50-60hz |
| 功率因数 | PF>0.95 |
| 功率效率 | 0.9 |
| 总谐波失真 | THD<10/<15 |
| 频闪 | 无 |
| 产品认真 | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| 调光 | 0-10V调光/可控硅调光/dali调光 |
| 寿命 | 50000hrs |
Decription
Shenzhen powerstar technology limited company is an good downlight supplier in china.This type downlight we designed for project .We set sales and produce and research in one.Our downlgiht often use citizen chip.Our downlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And our donwlight has passed the CE/RHOS certification.You can trust my downlight quality.
