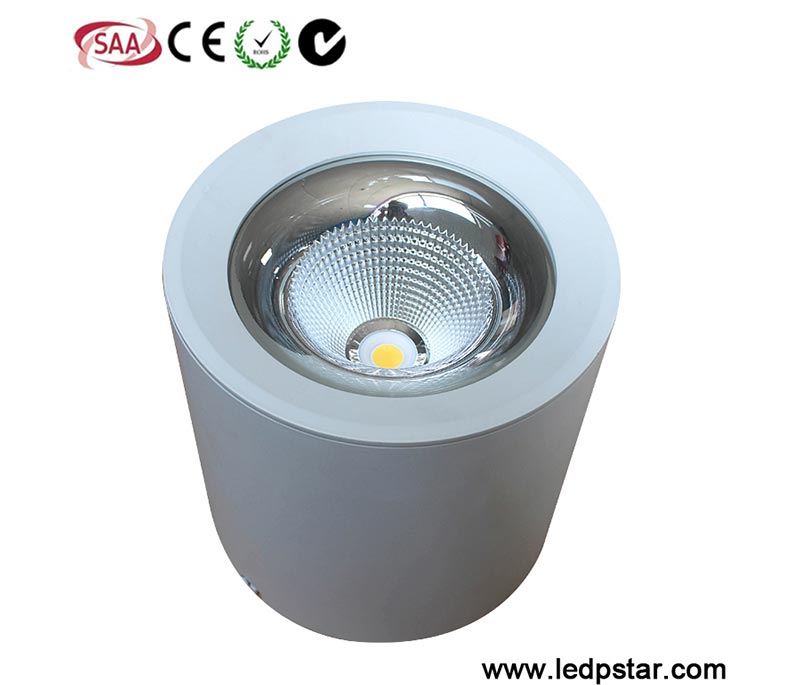

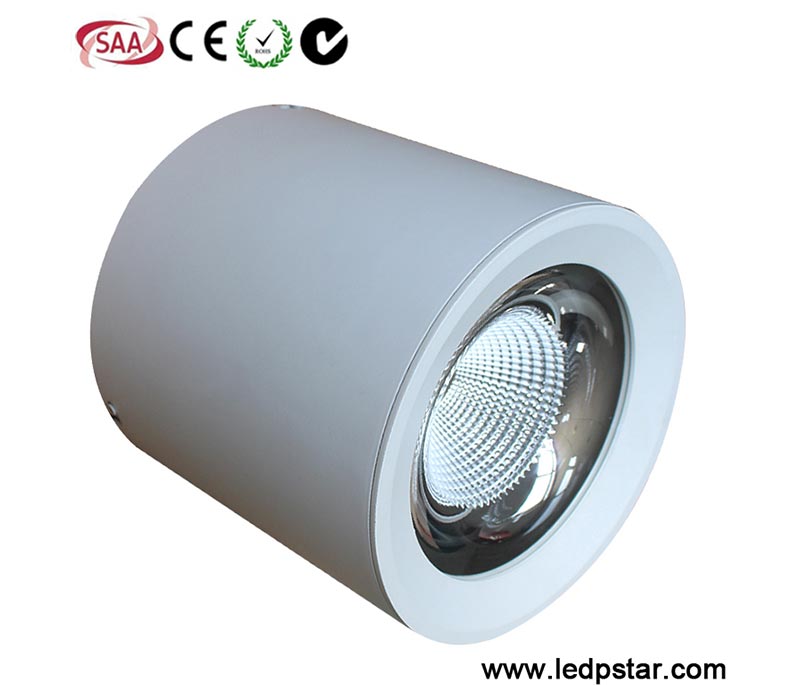

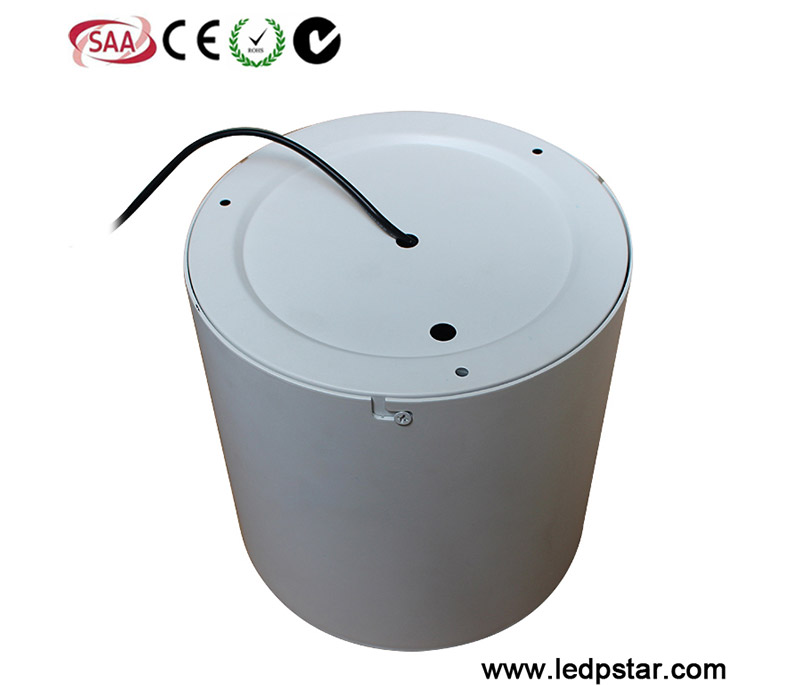

Surface Mounted LED Downlight
产品型号:PS-MDLR-5'30W-C21- 产品信息
- 测试
- 安装
- 下载文件
General Information
| Power | 30w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 170 |
| Housing size | 170*185 |
| Housing Max temperature (nom) | 65 |
| Light source | COB |
| LIGHT source brand | Citizen |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Meanwell/Osram/Philips/Lifud |
| Optics type | Reflector/Lense |
| Beam angle | 60 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 30w | 3000K | CRI>80 | <3 | 3100LM(103lm/w) | <3% |
| CRI>90 | <3 | 2900lm(98lm/w) | <3% | ||
| CRI>97 | <3 | 2700lm(97lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 3100LM(103lm/w) | <3% | |
| CRI>90 | <3 | 2900lm(98lm/w) | <3% | ||
| CRI>97 | <3 | 2700lm(97lm/w) | <3% |
Operating and Electrical
| Power | 30w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| Dimmable | NO/0-10V/Triac/dali |
| Life Time | 64000hrs |
Decription
Shenzhen powerstar technology limited company is an good downlight supplier in china.This type downlight we designed for offical project .It often be used in the airport or subway or overbridge.We set sales and produce and rearch in one.Our downlgiht often use citizen chip, .Our downlight use famous brand driver like lifud/trodinic/philip/Osram. So we can provide five years warranty .And our donwlight has passed the CE/RHOS certification.You can trust my downlight quality.
