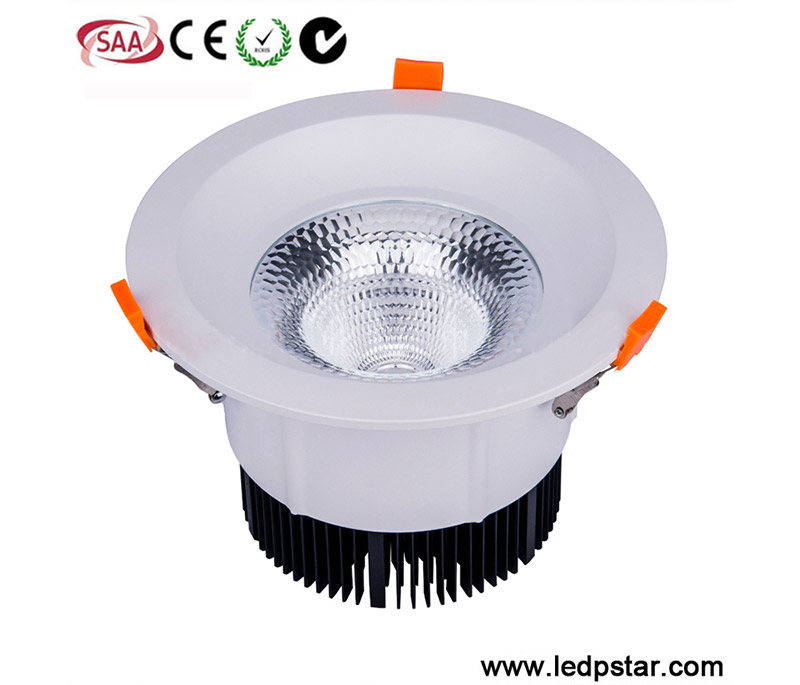

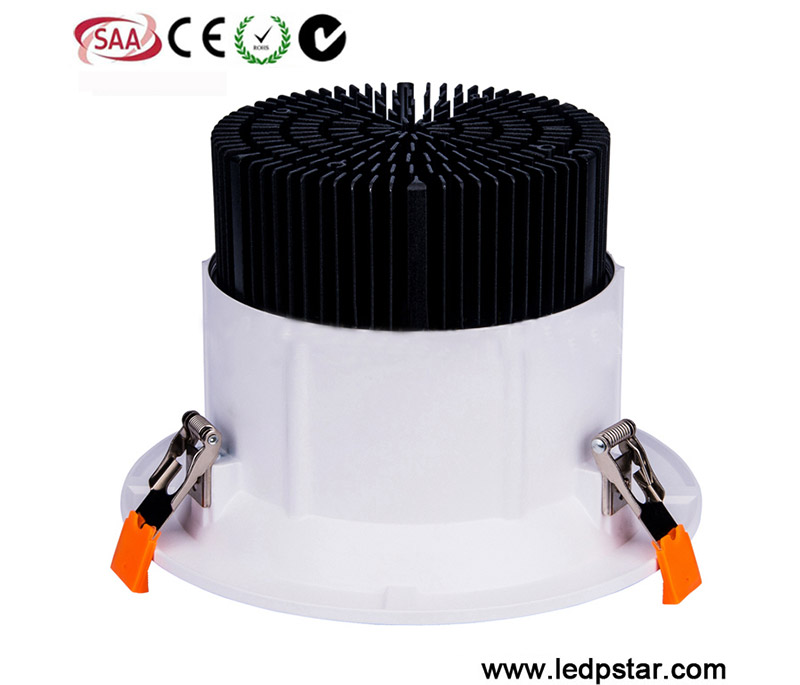

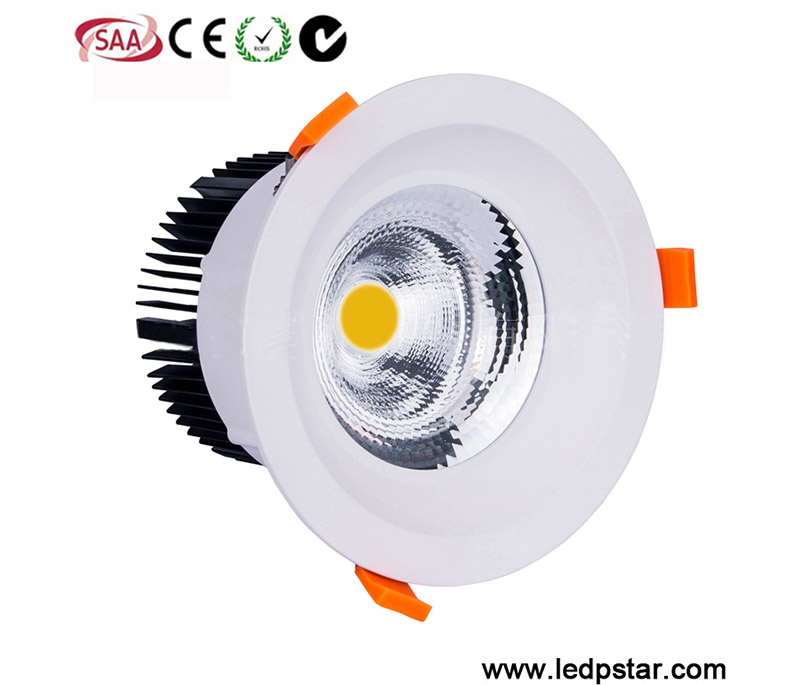

LED Downlight C20
产品型号:PS-DL-6'60W-C20- 产品信息
- 测试
- 安装
- 下载文件
产品信息
| 额定功率 | 60w |
| 材质 | 铝 |
| 颜色 | 白色 |
| 开孔 | 160mm |
| 产品尺寸 | 185*136mm |
| 外壳最高温度 (nom) | 65℃ |
| 光源类型 | COB |
| 光源品牌 | 西铁城 |
| 色温 | 2700K/3000K/3500K/4000K/5000K/5700K |
| 驱动品牌 | 锐高/明纬/欧司朗/飞利浦/柏科 |
| 光学 | 反光杯 |
| 发光角度 | 24°/40°/60° |
| 质保 | 5年 |
| 测试方式 | 积分球, IES/Ldt |
| 储藏环境温度 | -40℃~65℃ |
| 工作环境温度 | -20℃~45℃ |
| 防护等级 | IP44 |
| 适用范围 | 室内 |
产品参数配比
| 额定功率 | 色温(nom) | 显色指数 | 色容差 | 光通量(光效 ) | 光衰(10000hs) |
| 60w | 3000K | CRI>80 | <3 | 6782LM(113lm/w) | <3% |
| CRI>90 | <3 | 5810lm(96lm/w) | <3% | ||
| CRI>97 | <3 | 5533lm(92lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 6956LM(115lm/w) | <3% | |
| CRI>90 | <3 | 5900lm(98lm/w) | <3% | ||
| CRI>97 | <3 | 4460lm(89lm/w) | <3% |
产品参数
| 额定功率 | 60w |
| 额定电压 | 220-240v/50-60hz |
| 功率因数 | PF>0.95 |
| 功率效率 | 0.9 |
| 总谐波失真 | THD<10/<15 |
| 频闪 | 无 |
| 产品认证 | TUV/SAA/CE/CB/ENEC/RoHS |
| 调光方式 | 0-10V调光/可控硅调光/dali调光 |
| 产品寿命 | 50000hrs |
Decription
We are a good downlight supplier in china. Our company set sales and produce and rearch in one. We pay attention to research the high end downlight for our customers. Our downlight export all over the world. Our main market is Europe. Our downlight factory have CE/RHOS/GS/TUV etc related certification. Our downlight often be used in the commercial area like clothes shop /shopping mall /museum/supermarket/4s shop etc. Our company also can provide good solutions for your project.
