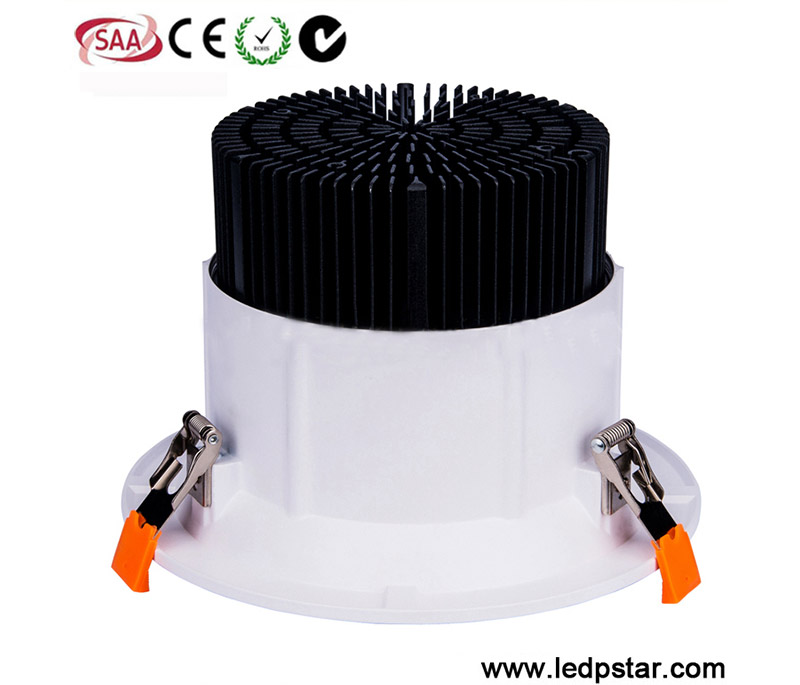

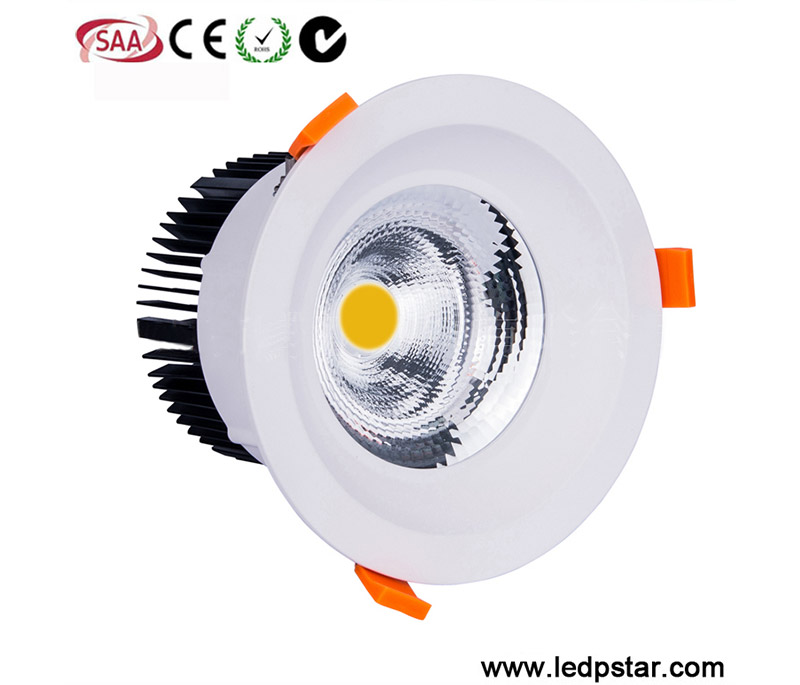

LED Downlight C20
产品型号:PS-DL-5'30W-C20- 产品信息
- 测试
- 安装
- 下载文件
General Information
| Power | 30w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 140 |
| Housing size | 160*133 |
| Housing Max temperature (nom) | 65 |
| Light source | COB |
| LIGHT source brand | Citizen |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Meanwell/Osram/Philips/Lifud |
| Optics type | Reflector/Lense |
| Beam angle | 60 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 30w | 3000K | CRI>80 | <3 | 3100LM(103lm/w) | <3% |
| CRI>90 | <3 | 2900lm(98lm/w) | <3% | ||
| CRI>97 | <3 | 2700lm(97lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 3100LM(103lm/w) | <3% | |
| CRI>90 | <3 | 2900lm(98lm/w) | <3% | ||
| CRI>97 | <3 | 2700lm(97lm/w) | <3% |
Operating and Electrical
| Power | 30w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| Dimmable | NO/0-10V/Triac/dali |
| Life Time | 64000hrs |
Decription
Shenzhen powerstar technology limited company is an professional downlight supplier in china. This hot sale 355 rotation gimmable led downlight is special downlight. It is spread used in the shopping mall or clothes shop etc commercial area. Our downlight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we has passed the CE/RHOS/GS/TUV certification .You can trust my downlight quality.
