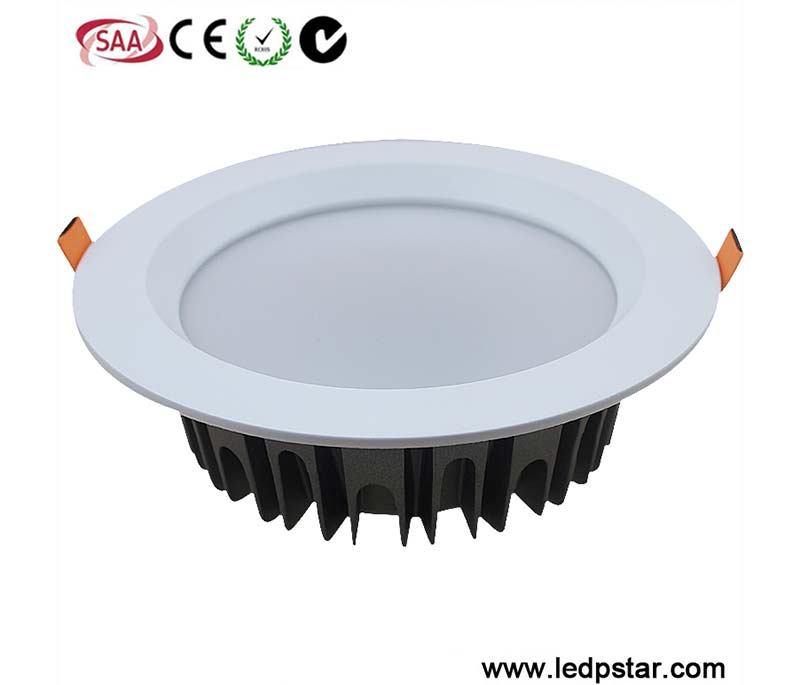

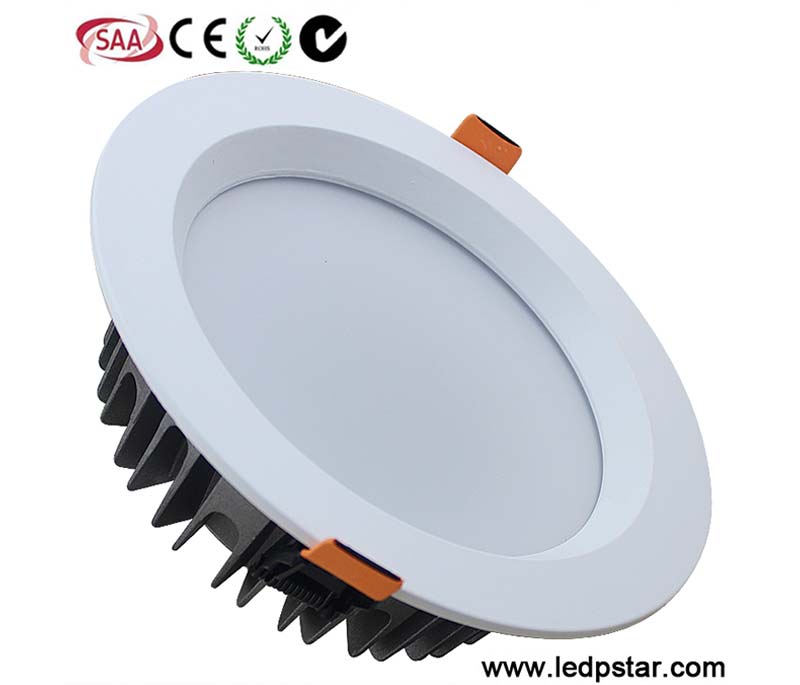

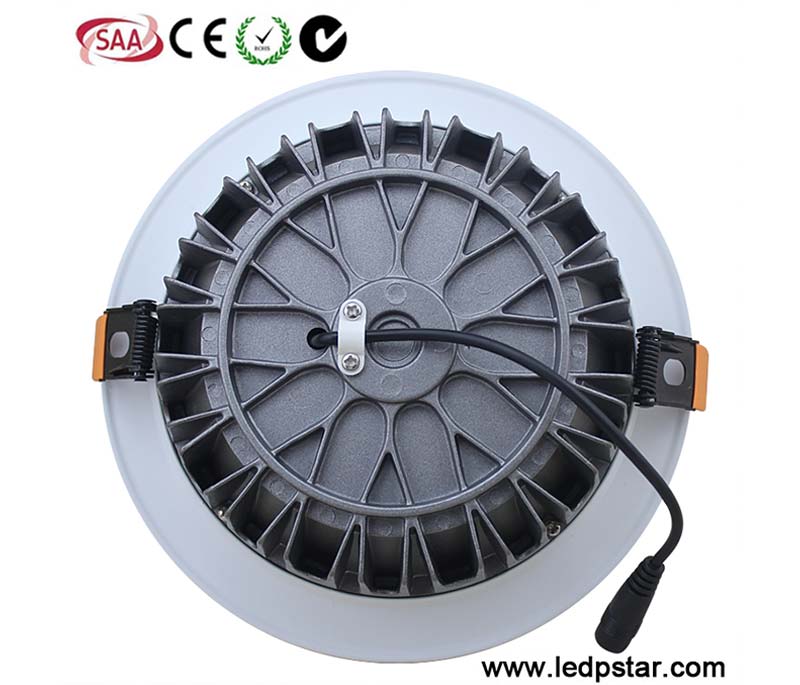

LED Downlight A6
产品型号:PS-DL-4'12W-A6- 产品信息
- 测试
- 安装
- 下载文件
General Information
| Power | 12w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 110-115 |
| Housing size | 140*50 |
| Housing Max temperature (nom) | 65 |
| LIGHT source | SMD5630 |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Meanwell/Osram/Philips/Lifud |
| Optics type | Reflector/Lense |
| Beam angle | 90/120 |
| Warranty | 3 years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 12w | 3000K | CRI>80 | <3 | 1260LM(105lm/w) | <3% |
| CRI>90 | <3 | 1080lm(90m/w) | <3% | ||
| 4000K | CRI>80 | <3 | 1284LM(107lm/w) | <3% | |
| CRI>90 | <3 | 1092lm(91lm/w) | <3% |
Operating and Electrical
| Power | 12w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | NO/0-10V/Triac/dali |
| Life Time | 64000hrs |
Decription
Shenzhen powerstar technology limited company is an good downlight supplier in china .This type downlight we designed for project .we set sales and produce and research in one .Our downlgiht often use citizen chip.Our downlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And our donwlight has passed TUV/SAA/CE/CB/ENEC/RoHS/GS certification.You can trust my downlight quality.
