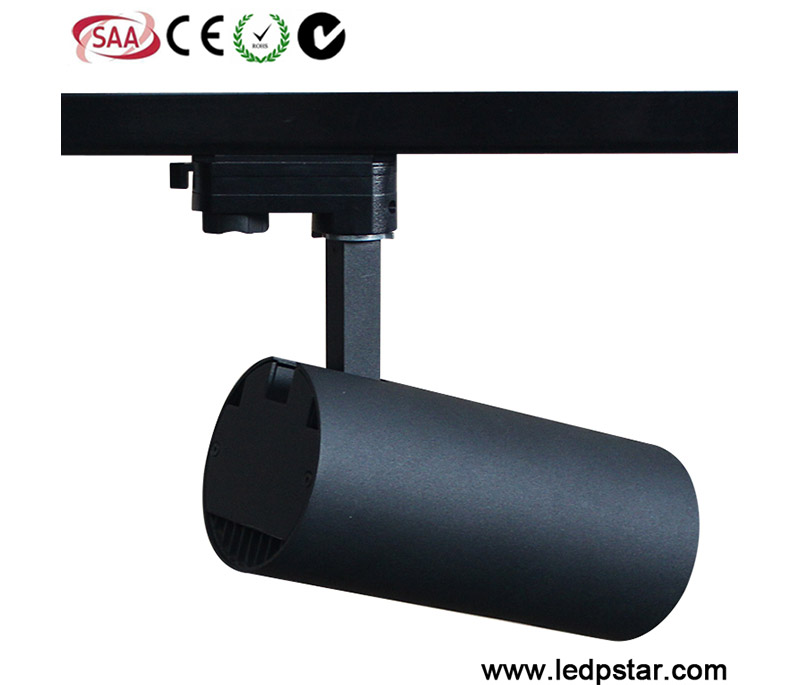

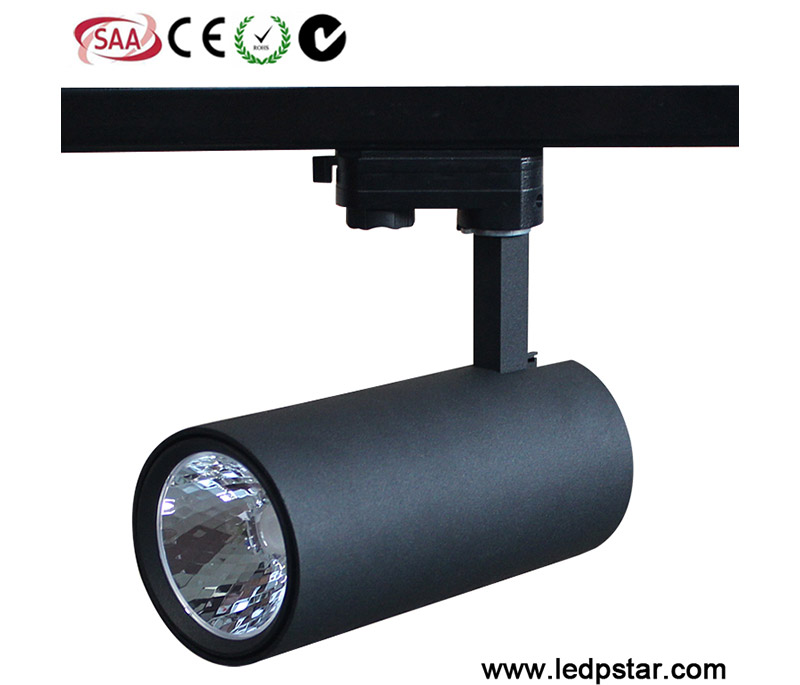

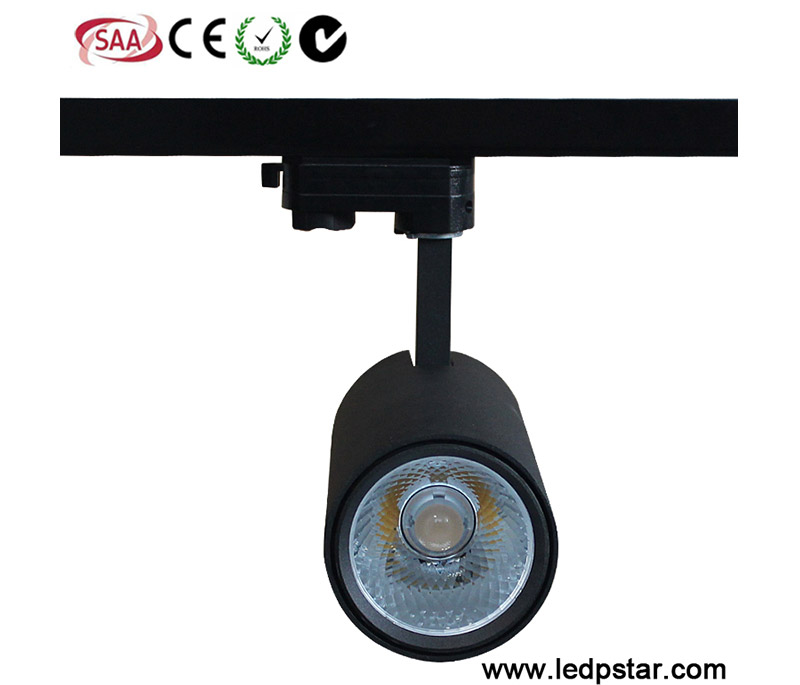

10degree 135lm/w 25w track light led
产品型号:PS-TL-25W-X16- 产品信息
- 测试
- 安装
- 下载文件
General Information
| Power | 25w |
| Housing material | AL |
| housing Color | black/white/silver |
| Housing size | 90x200 |
| Housing Max temperature (nom) | 65 |
| Light source | COB |
| LIGHT source brand | Citizen/bridgelux/cree/luminus/Epistar |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Meanwell/Osram/Philips/Lifud |
| Optics type | Reflector/Lense |
| Beam angle | 15/24/38/60 |
| UGR | 19 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Installation method | 2/3/4/6wires |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
| Qty/cartons | 16PCS |
| Carton size | 45*45*52 |
| GW/NW | 16kg/13.8kg |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 25w | 3000K | CRI>80 | <3 | 2449LM(98lm/w) | <3% |
| CRI>90 | <3 | 2099lm(84lm/w) | <3% | ||
| CRI>97 | <3 | 1878lm(75lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 2514LM(100lm/w) | <3% | |
| CRI>90 | <3 | 2132lm(85lm/w) | <3% | ||
| CRI>97 | <3 | 1926lm(77lm/w) | <3% |
Operating and Electrical
| Power | 25w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | NO/0-10V/Triac/dali/push/DMX512 |
| Life Time | 64000hrs |
Decription
We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.

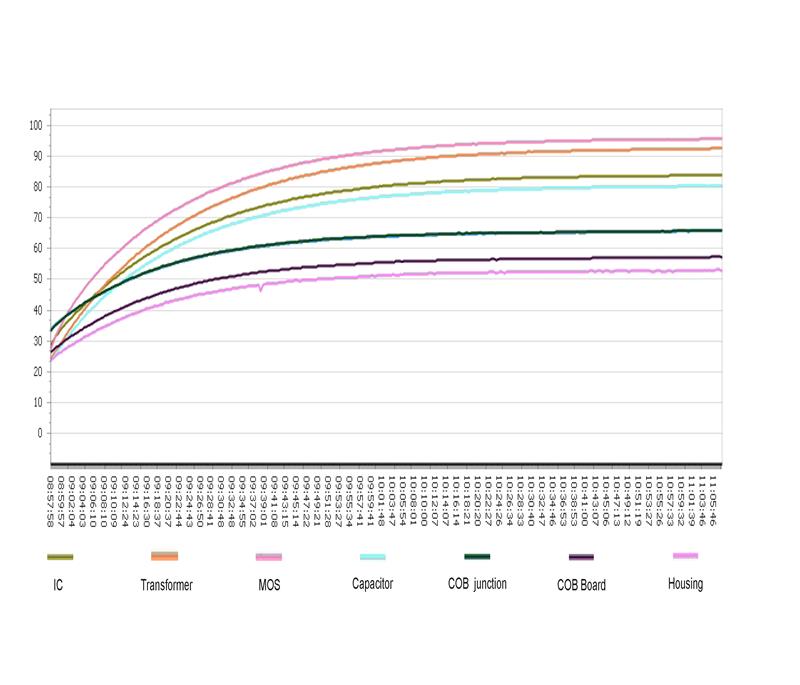

The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitol,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature is 150℃

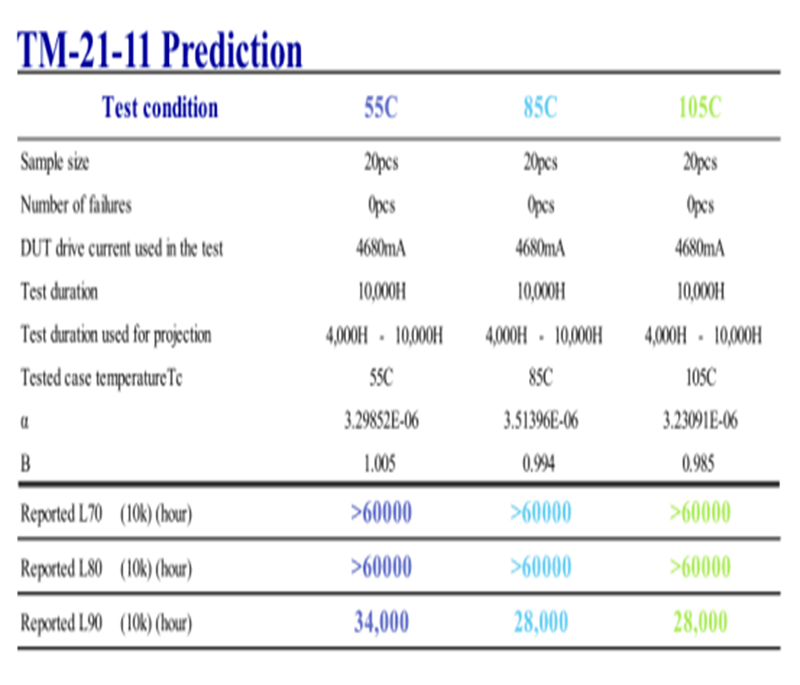

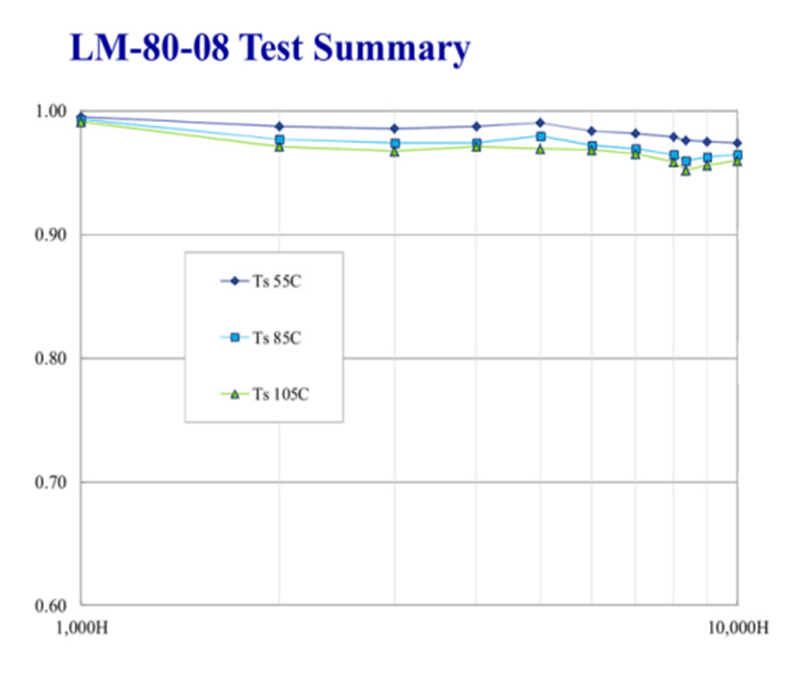

LIGHT LM21&LM80
