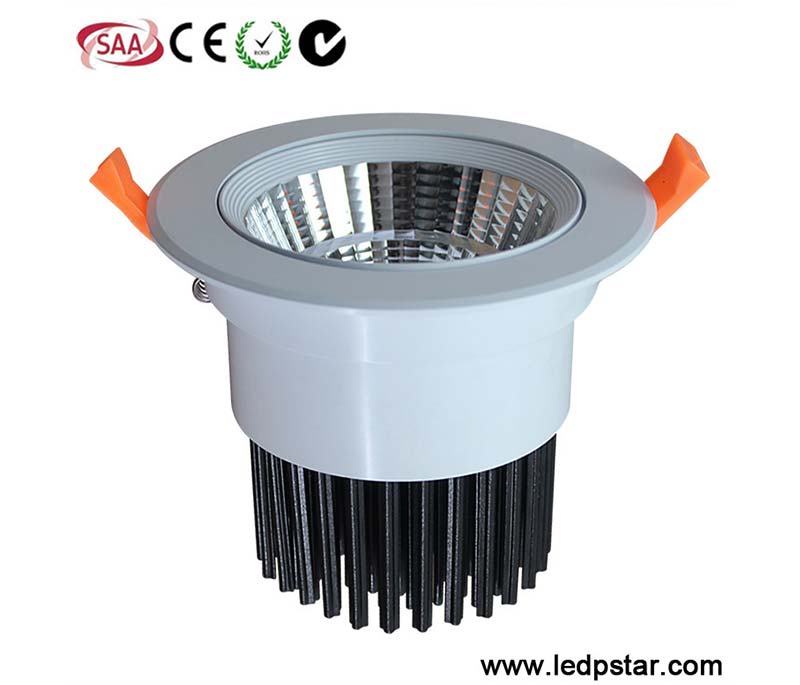

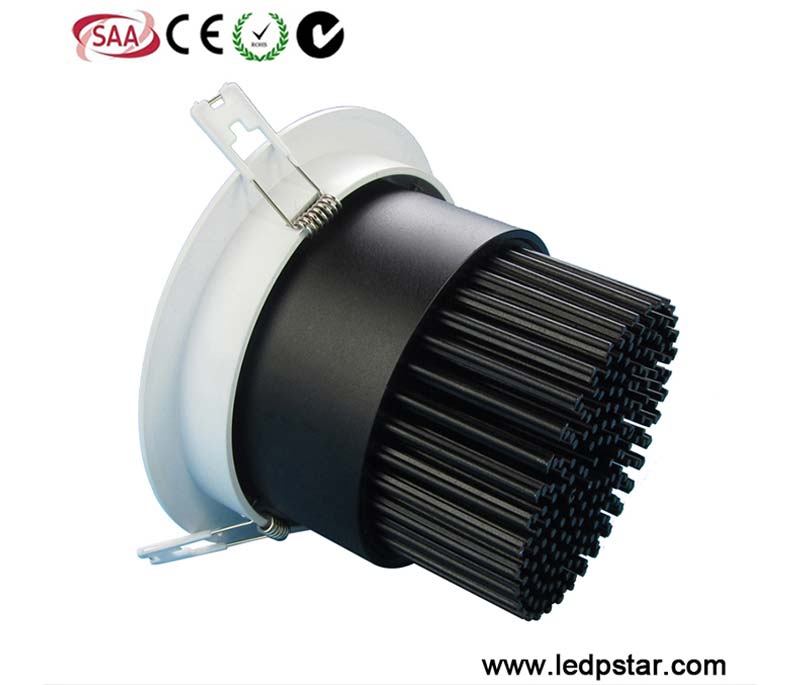

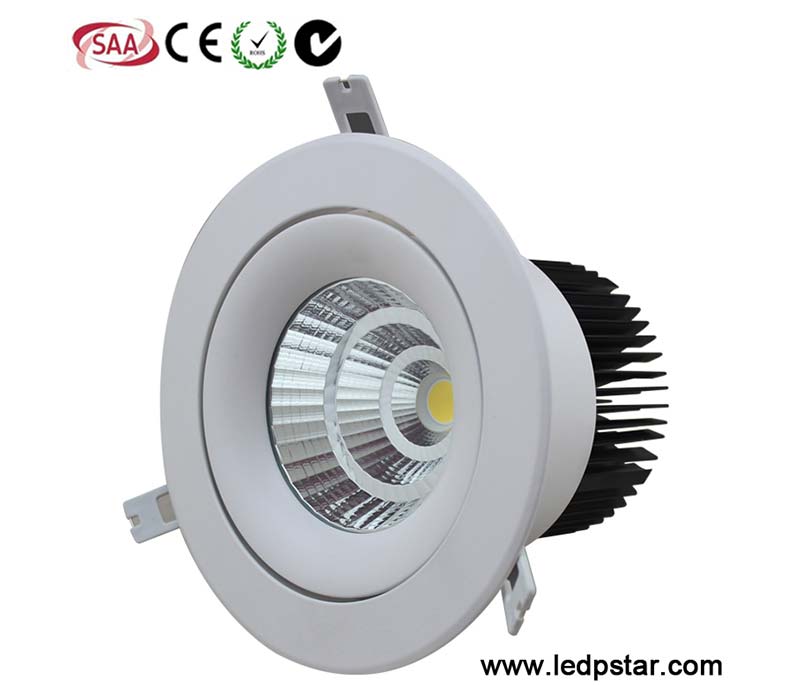

LED Downlight C3
产品型号:PS-DL-5'40W-C3- 产品信息
- 测试
- 安装
- 下载文件
General Information
| Power | 40w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 145 |
| Housing size | 180*128.5 |
| Housing Max temperature (nom) | 65 |
| Light source | cob |
| LIGHT source brand | citizen/cree |
| CCT | 2700/3000/3500/4000/5000/5700 |
| Driver Brand | Tridonic/Meanwell/Osram/Philips/Lifud |
| Optics type | Reflector/Lense |
| Beam angle | 15/24/38/60 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
| Qty/cartons | 12PCS |
| Carton size | 46*34*36 |
| GW/NW | 16kg/13.8kg |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 40w | 3000K | CRI>80 | <3 | 4866LM(121lm/w) | <3% |
| CRI>90 | <3 | 4169lm(104lm/w) | <3% | ||
| CRI>97 | <3 | 3730lm(93lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 4993LM(124lm/w) | <3% | |
| CRI>90 | <3 | 4232lm(105lm/w) | <3% | ||
| CRI>97 | <3 | 3823lm(95lm/w) | <3% |
Operating and Electrical
| Power | 40w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | NO/0-10V/Triac/dali/push |
| Life Time | 64000hrs |
Decription
As you know, Shenzhen powerstar technology limited company can produce the good quality downlight. We are a good downlight factory .Our company set sales and produce and research in one .We pay attention to research the high end led downlight for our customers .We often test our downlight by ies or test ball .You can download the files .So you can see my donwlight quality report.
